LTZ(Model TLL) Elastic sleeve pin coupling with brake wheel

characteristics
1, the structure is relatively simple, easy to manufacture, no lubrication, no need to bond with metal vulcanization
2, easy to change the elastic sleeve, no need to move the semi-coupling, with compensation of two axes relative offset and damping buffer performance
3. It is suitable for medium and small power shafting drive with good rigidity of mounting base, high precision in middle, small impact load and low requirement for vibration reduction.
LTZ(TLL type) elastic sleeve pin coupling operating temperature -20℃-+70℃, transfer torque 125 ~ 16000N·m Brake wheel semi-couplings are machined with cast steel or forged steel, and the surface of t
INQUIRY

Product Name: LTZ(TLL) type elastic sleeve pin coupling with brake wheel
Product Model: LTZ(TLL)
Product material: regular 45# steel can be customized special material
Surface treatment: natural surface black
Application: It is widely used in all kinds of medium and small power transmission shafting system with little impact load and good rigidity of motor drive base.
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!

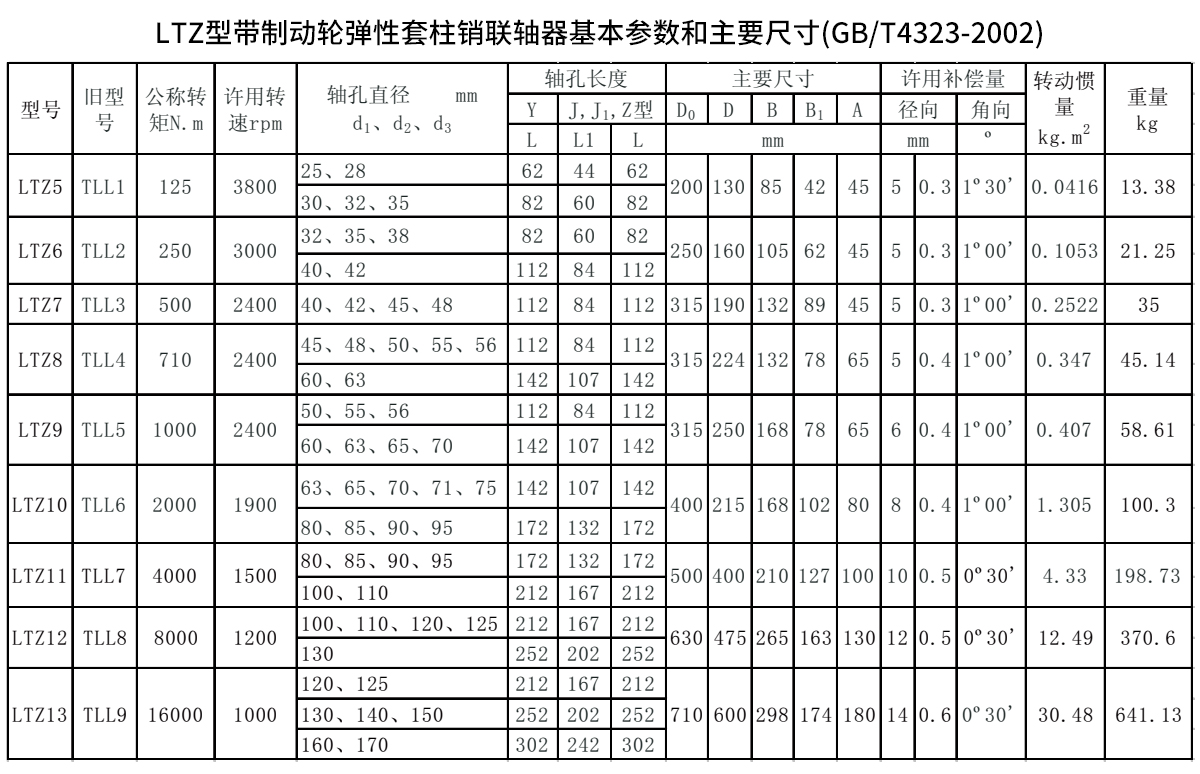

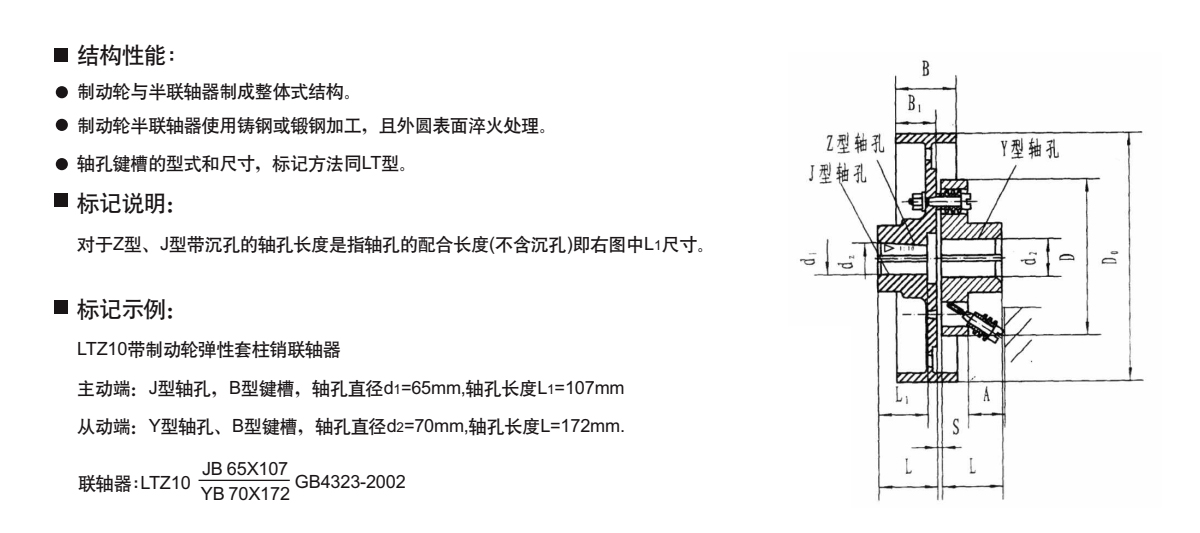

Product parameter picture display:
