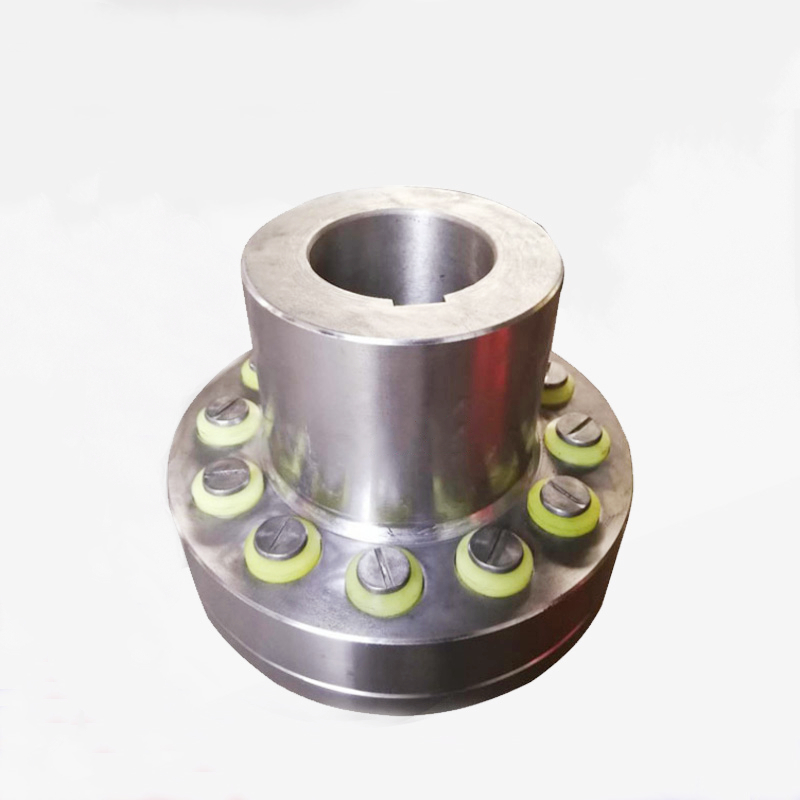

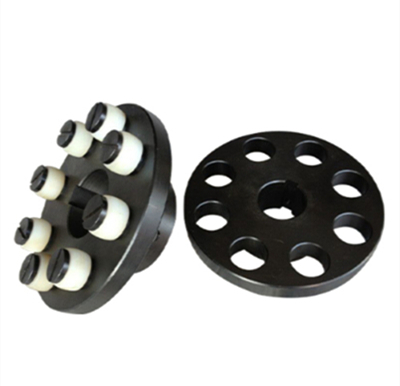

TL pin bush coupling

characteristics
1, simple structure, easy installation, easy to replace the elastic sleeve, small size, light weight
2, there is a certain compensation between the two axes of the relative displacement and shock absorption performance
3, working temperature -20℃-+70℃, transfer torque is 6.3 ~ 16000N·m
TL TYPE ELASTIC SLEEVE PIN COUPLING IS SUITABLE FOR THE TRANSMISSION of medium AND small power water pump WITH high speed, good rigidity of mounting base, high precision in middle, low impact load and
INQUIRY

Product Name: TL type elastic sleeve pin coupling
Product Model: TL
Product material: regular 45# steel can be customized special material
Surface treatment: natural surface black
Application: It is widely used in all kinds of medium and small power transmission shafting system with little impact load and good rigidity of motor drive base.
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!

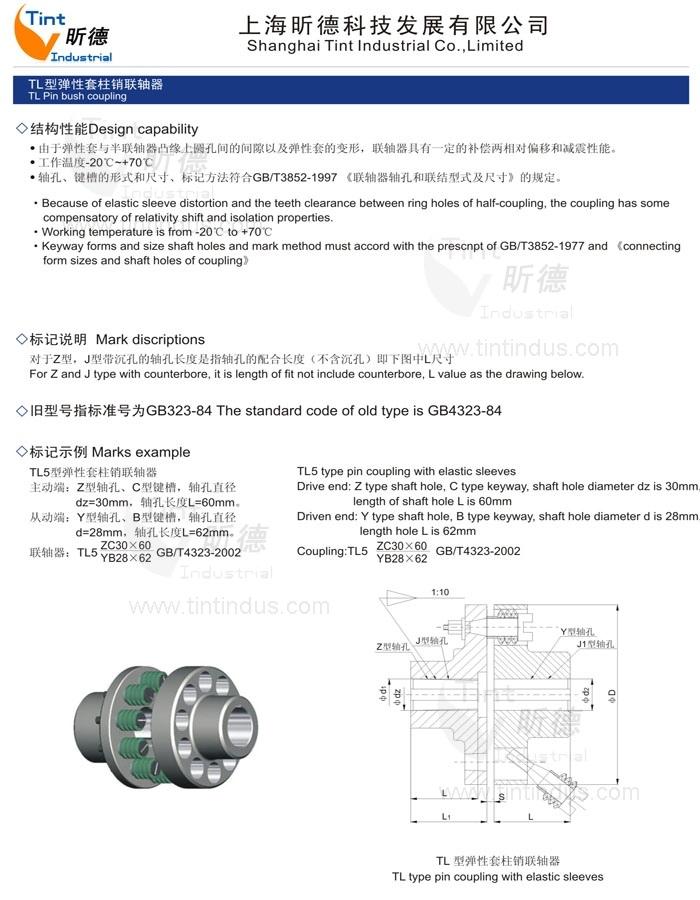

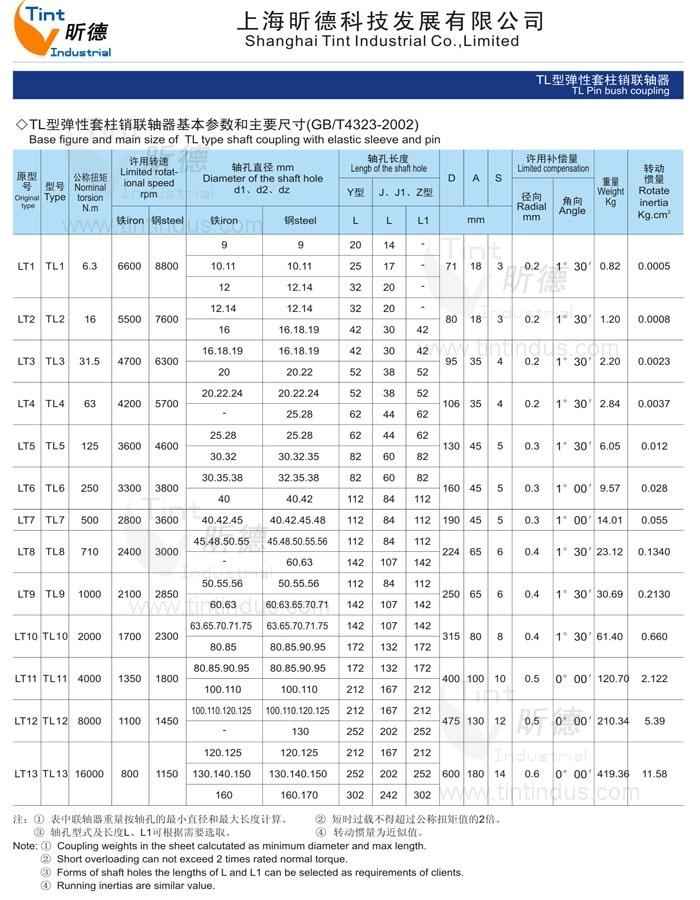

Product parameter picture display:
