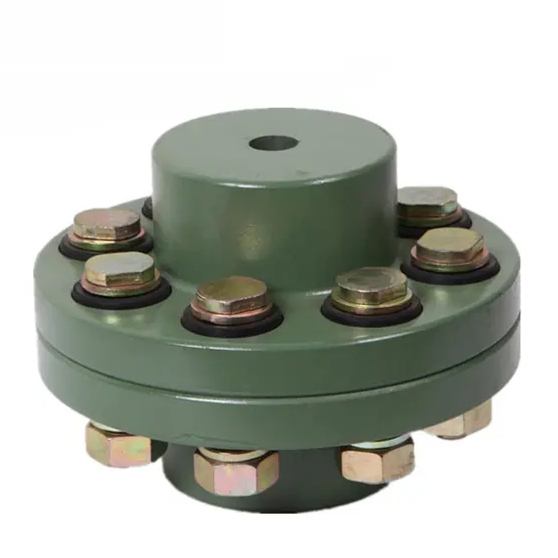

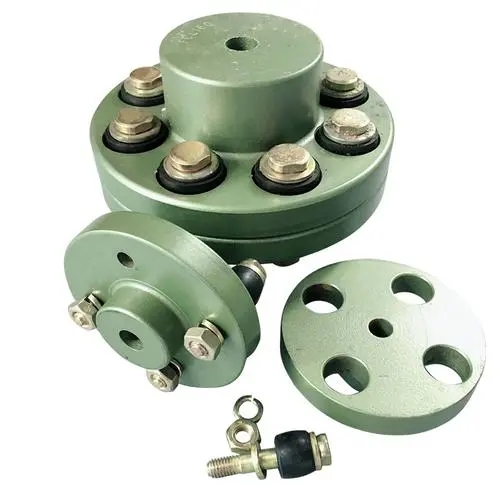

FCL type elastic sleeve pin coupling

characteristics
1, simple structure, easy installation, easy to replace the elastic sleeve, small size, light weight
2, there is a certain compensation between the two axes of the relative displacement and shock absorption performance
3, suitable for high speed, installation base rigidity, high precision, impact load is not large, vibration reduction requirements are not high medium and small power water pump transmission
FCL TYPE elastic sleeve pin coupling is easy to install and maintain, adapt to changing positive and negative rotation, frequent starting occasions Operating temperature -20℃-+70℃, transfer torque of
INQUIRY

Product model: FCL

Product material: regular 45# steel can be customized special material

Surface treatment: natural surface black

Application: It is widely used in all kinds of medium and small power transmission shafting system with little impact load and good rigidity of motor drive base.

Delivery time: large stock of semi-finished products, please inquire

Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version

Order in large quantities, the price is superior!

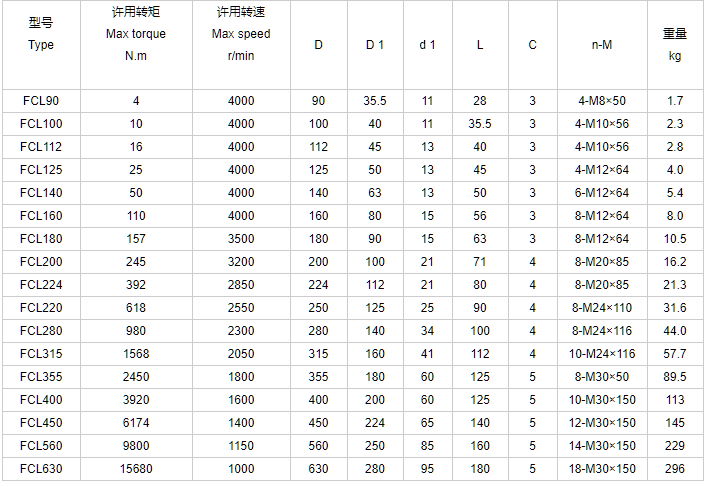

Product parameter picture display:
