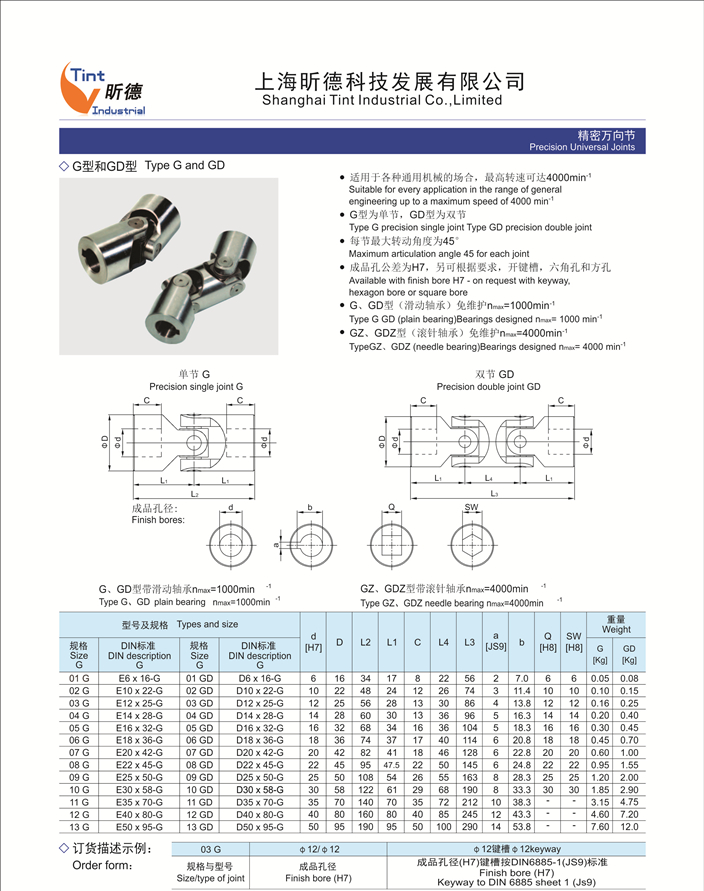

Type G and GD

The characteristics of
1, suitable for the connection space on the same plane of the two axis axis Angle ≤30° transmission
2, the transmission of nominal torque 11.2-1120N.m. (can be customized for larger torque)
3, conventional keyway top wire hole, can be customized according to the requirements of different hole shape and fixation
G type GD type precision universal joint product inner hole length can be customized according to customer requirements, the finished product tolerance is H7, and according to requirements, keyway, he
INQUIRY

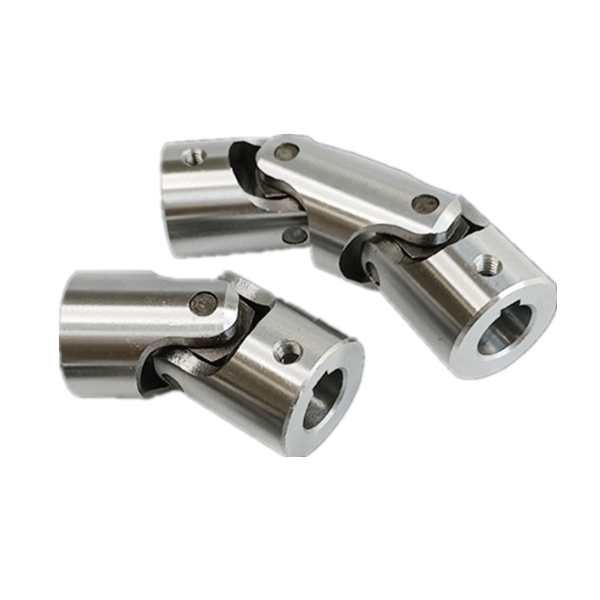

Product Model: G type single joint， GD double joint
Product Features:
1. It is suitable for all kinds of general mechanical occasions, the pin square structure can be used up to 1000 RPM, the needle roller bearing structure can be used up to 4000 RPM, it is recommended that the actual use speed is within 50% of the maximum speed
2. Applicable to the joint space on the same plane between the two axes Angle of each section of the limit rotation Angle is 45 degrees, allowing the use of Angle less than 30 degrees
3. The fast locking device provided is only the finished hole with the tolerance of H7. The standard keyway or hexagonal hole is optional, and different installation structures can be customized
Product material: conventional 40Cr high carbon steel can be customized 304 316 and other special materials
Surface treatment: natural surface black chrome nickel plating sand blasting
Product use: often used in packaging machinery woodworking machinery multi drill metallurgy machinery various special transmission occasions (support non-standard customization)
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!
