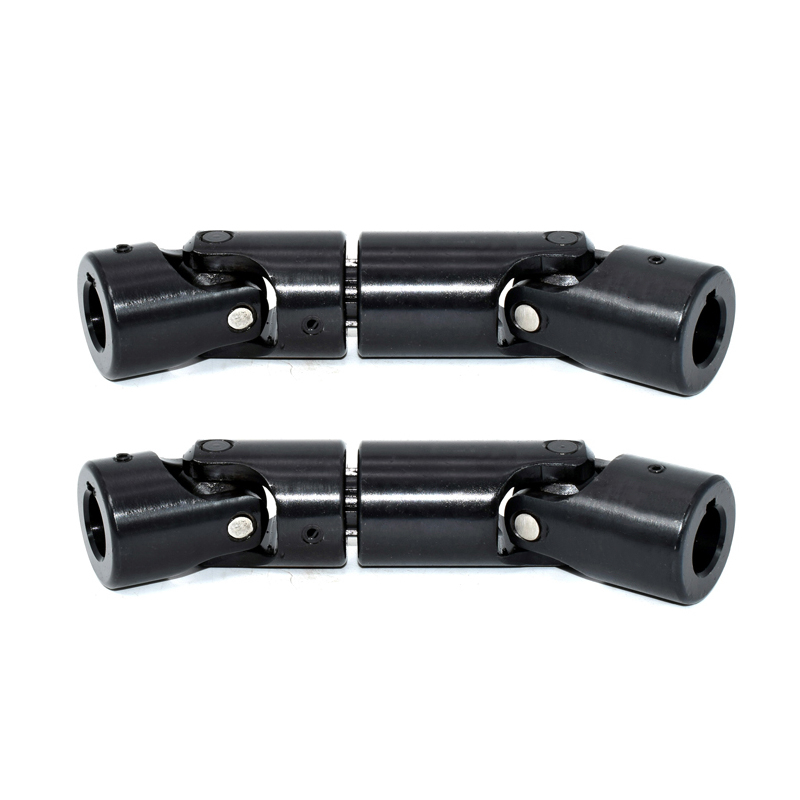

WSP type retractable small cross shaft universal coupling

WSP type retractable small cross shaft universal coupling

characteristics
1, each section of the limit rotation Angle is 45 degrees, allowing the use of Angle less than 30 degrees
2. Connect larger shaft spacing
3, the transmission of nominal torque 25-1500N.m. (can be customized for larger torque)
WSP type retractable universal joint precise fit, small clearance, low noise, long service life Simple and scalable structure, easy maintenance, high transmission efficiency Welcome to call: 1337193
INQUIRY

Product Name: WSP type retractable small cross shaft universal coupling
Product Model: WSP
Product Features:

1. It is suitable for all kinds of general mechanical occasions, the pin square structure can be used up to 1000 RPM, the needle roller bearing structure can be used up to 4000 RPM, it is recommended that the actual use speed is within 50% of the maximum speed

2. Applicable to the joint space on the same plane between the two axes Angle of each section of the limit rotation Angle is 45 degrees, allowing the use of Angle less than 30 degrees
3. The finished hole tolerance is H7, with standard keyway or hexagonal hole optional, different installation structures can be customized
Product material: conventional 40Cr high carbon steel can be customized 304 316 and other special materials
Surface treatment: polished surface black chrome nickel plating sand blasting
Product use: often used in packaging machinery woodworking machinery multi drill metallurgy machinery various special transmission occasions (support non-standard customization)
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!
