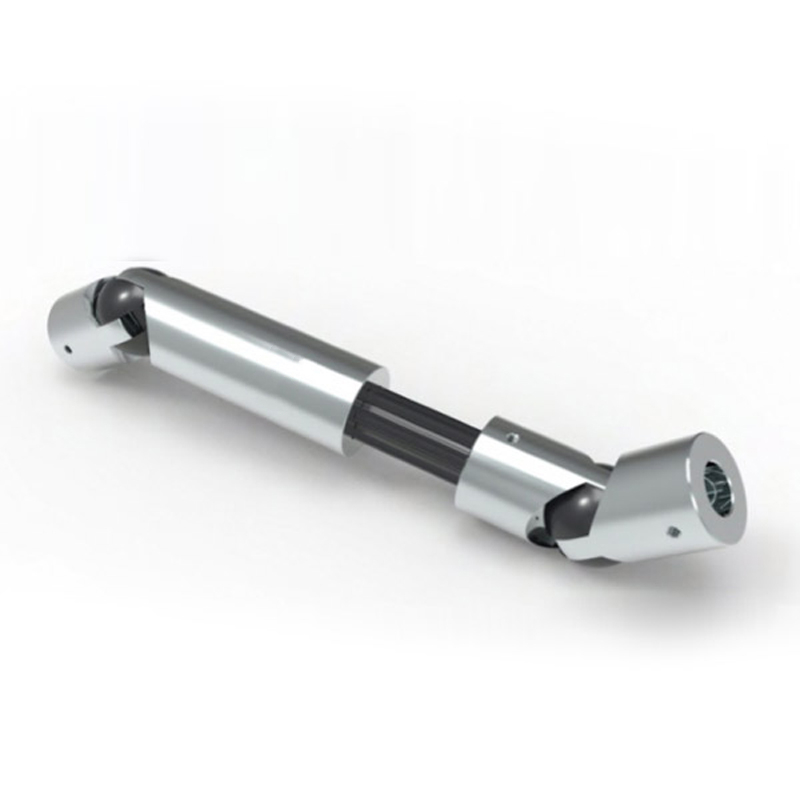

Product name: QC type ball fork type universal joint coupling
Product model: QC
Product Features:
1. It is suitable for all kinds of general mechanical occasions, simple structure, detachable joints, easy maintenance, high transmission efficiency, and larger shaft spacing.
2. Applicable to the joint space on the same plane between the two axes Angle of each section of the limit rotation Angle is 45 degrees, allowing the use of Angle less than 30 degrees
3. Only finished holes with tolerance H7 are provided, with standard keyway or hexagonal hole optional, and different installation structures can be customized
Product material: conventional 40Cr high carbon steel can be customized 304 316 and other special materials
Surface treatment: natural surface black chrome-plated nickel sandblasting
Product use: often used in packaging machinery woodworking machinery multi drill metallurgy machinery various special transmission occasions (support non-standard customization)
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!
∷
