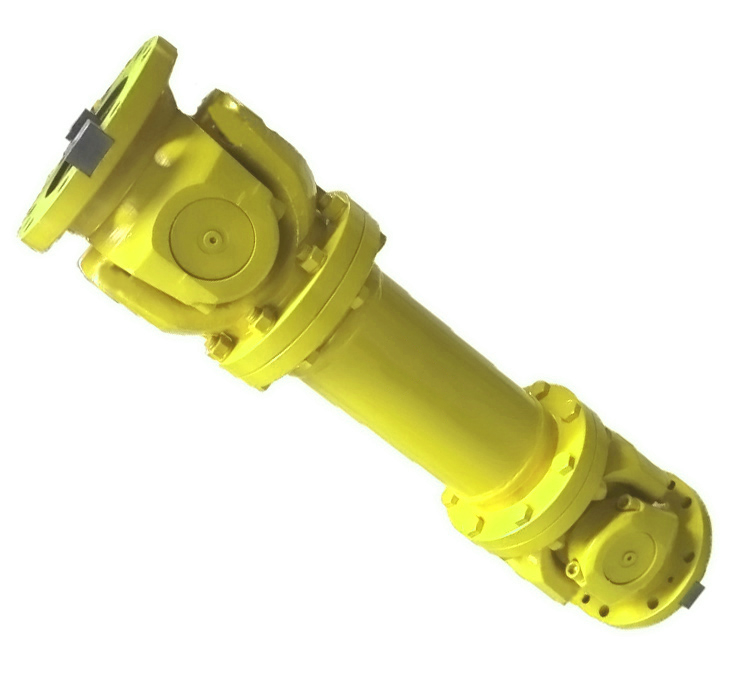

SWC- WF type (without telescopic flange) universal coupling

characteristics
1. Compact and reasonable structure, SWC type adopts integral fork head, which makes carrying more reliable
2, with large Angle compensation ability, SWC axis bending Angle can reach 15-25 degrees
3, smooth carrying, low noise, simple installation and disassembly maintenance
SWC-WF型万向轴传动效率高，适用大功率传动，节能欢迎致电：13371933299
INQUIRY

Product name: SWC WF type (non-telescopic flange type) universal coupling
Product Model: SWC WF
Product material: regular 45# steel can be customized according to requirements
Surface treatment: surface baking paint
SWC type universal coupling can be widely used in lifting, engineering transportation, mining, petroleum, shipping, coal, rubber, papermaking machinery and other heavy machinery industry in the transmission of torque
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!

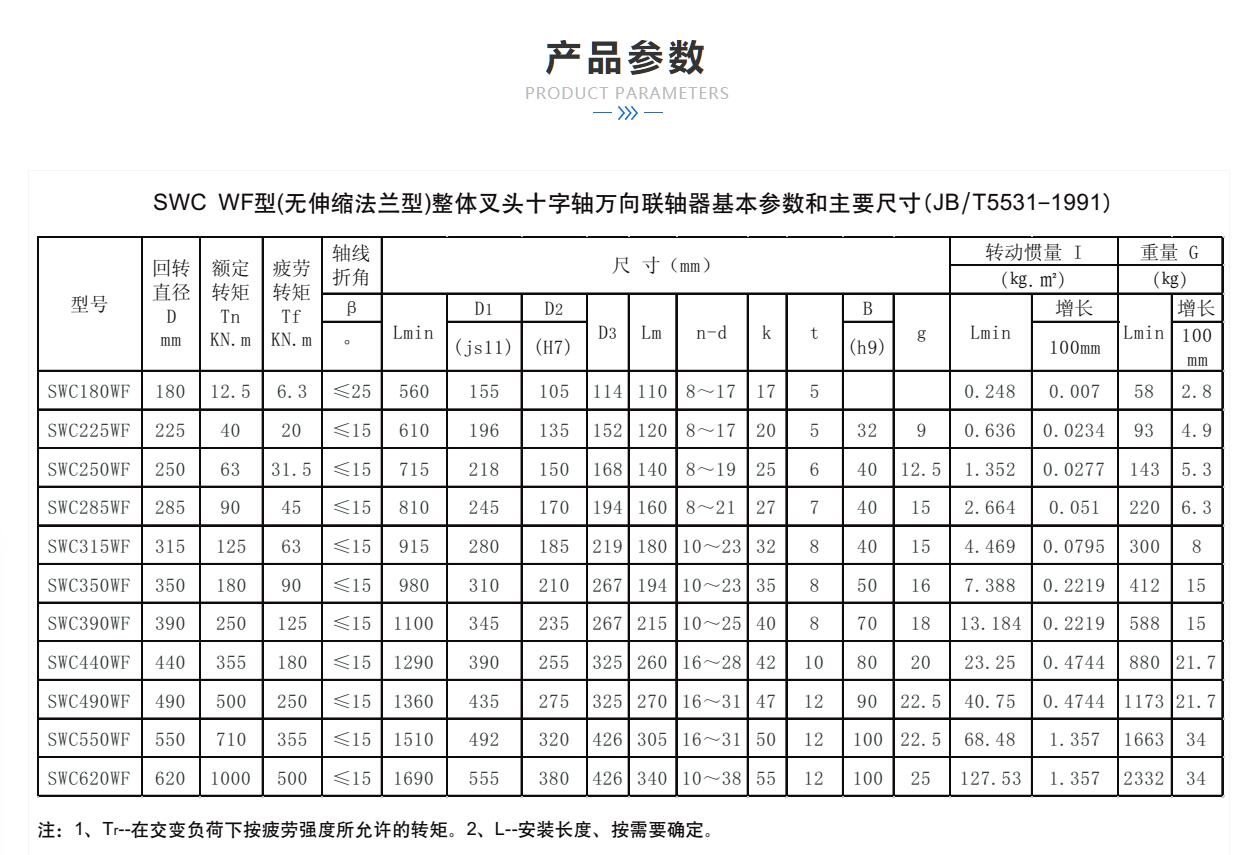

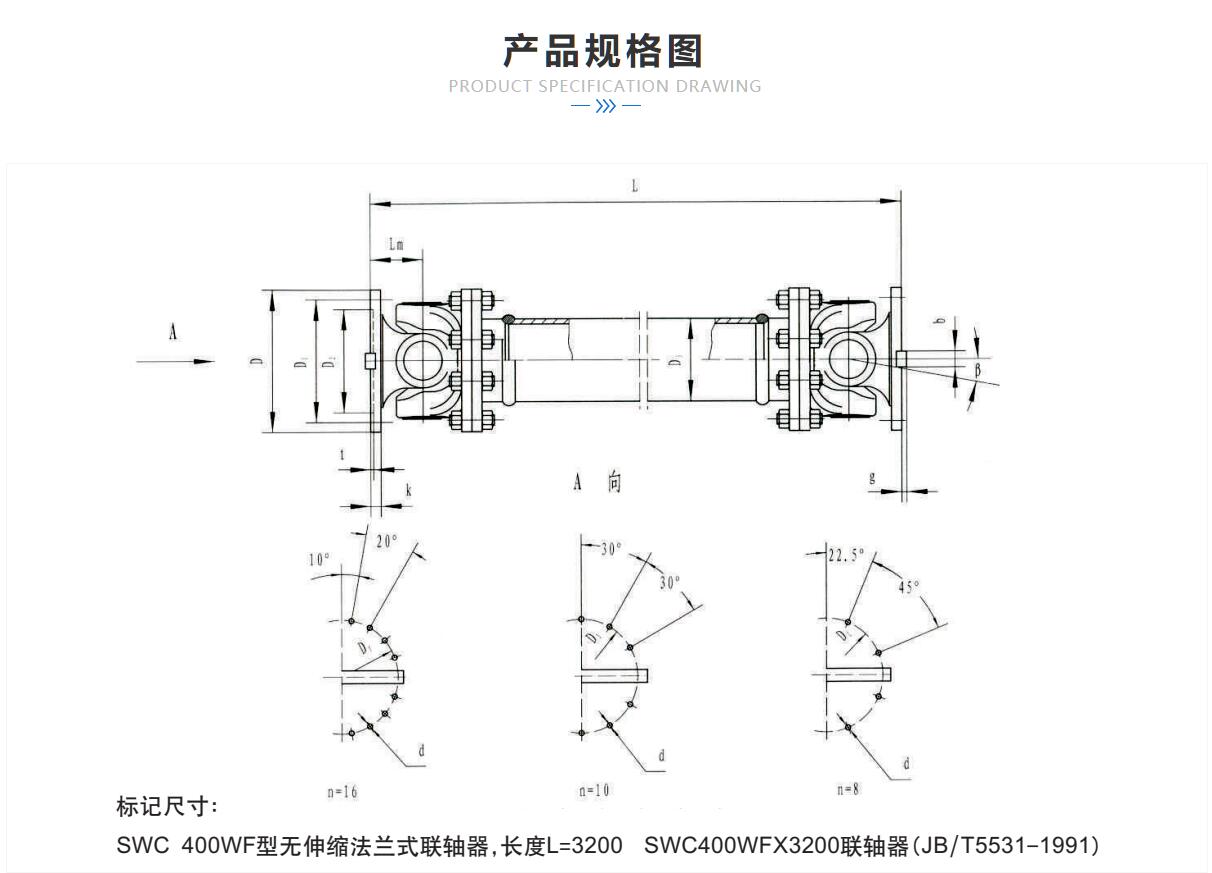

Product parameter picture display:
