SWC-WD type non - extension shortening universal coupling

characteristics
1. With large Angle compensation ability, SWC axis bending Angle can reach 15-25 degrees
2, the structure is compact and reasonable, SWC type adopts the integral fork head, which makes the carrying more reliable
3, large bearing capacity, large torque
SWC cardan shaft carrying smooth, low noise, easy to assemble and disassemble Reasonable structure, safe and reliable Welcome to call: 13371933299
INQUIRY

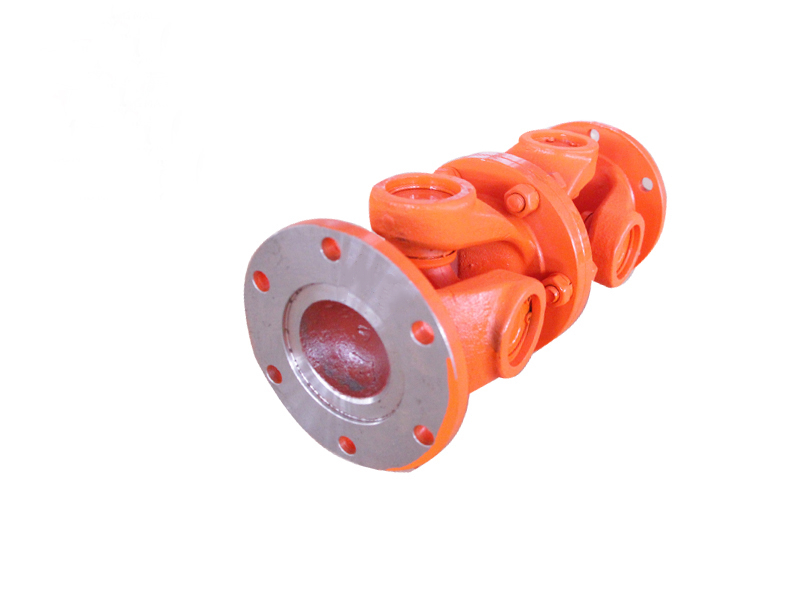

Product name: SWC WD type (no extension shortening type) universal coupling
Product model: SWC WD
Product material: regular 45# steel can be customized according to requirements
Surface treatment: surface baking paint
SWC type universal coupling can be widely used in lifting, engineering transportation, mining, petroleum, shipping, coal, rubber, papermaking machinery and other heavy machinery industry in the transmission of torque
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version

Order in large quantities at favorable prices

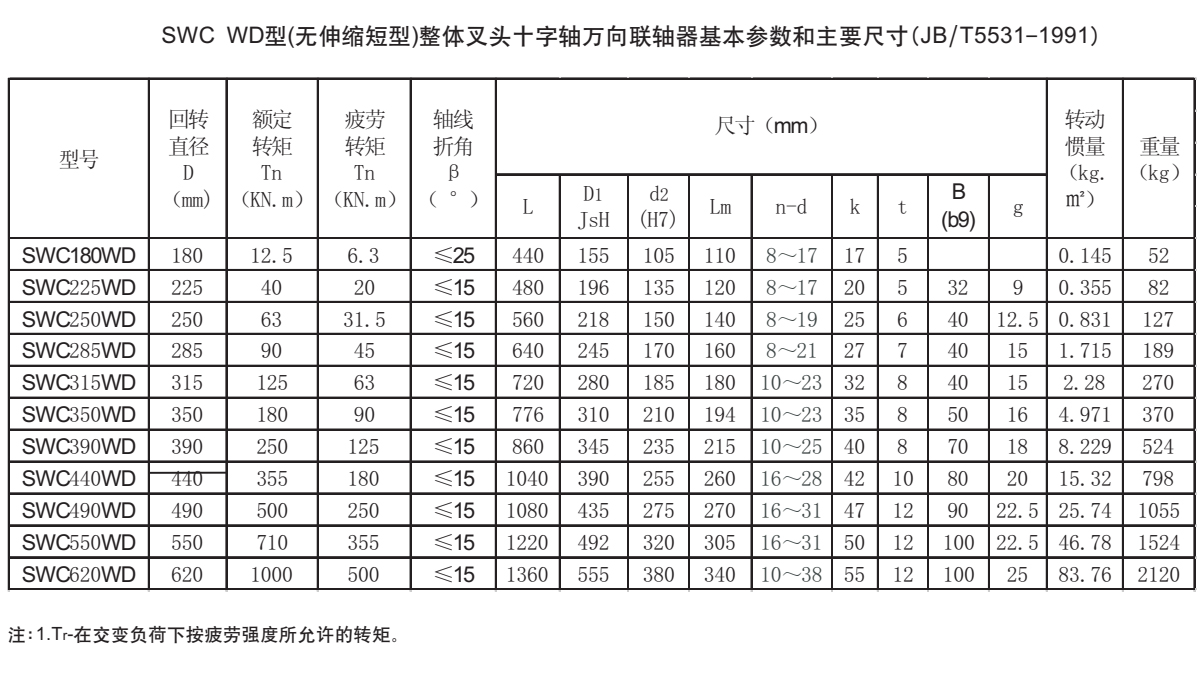

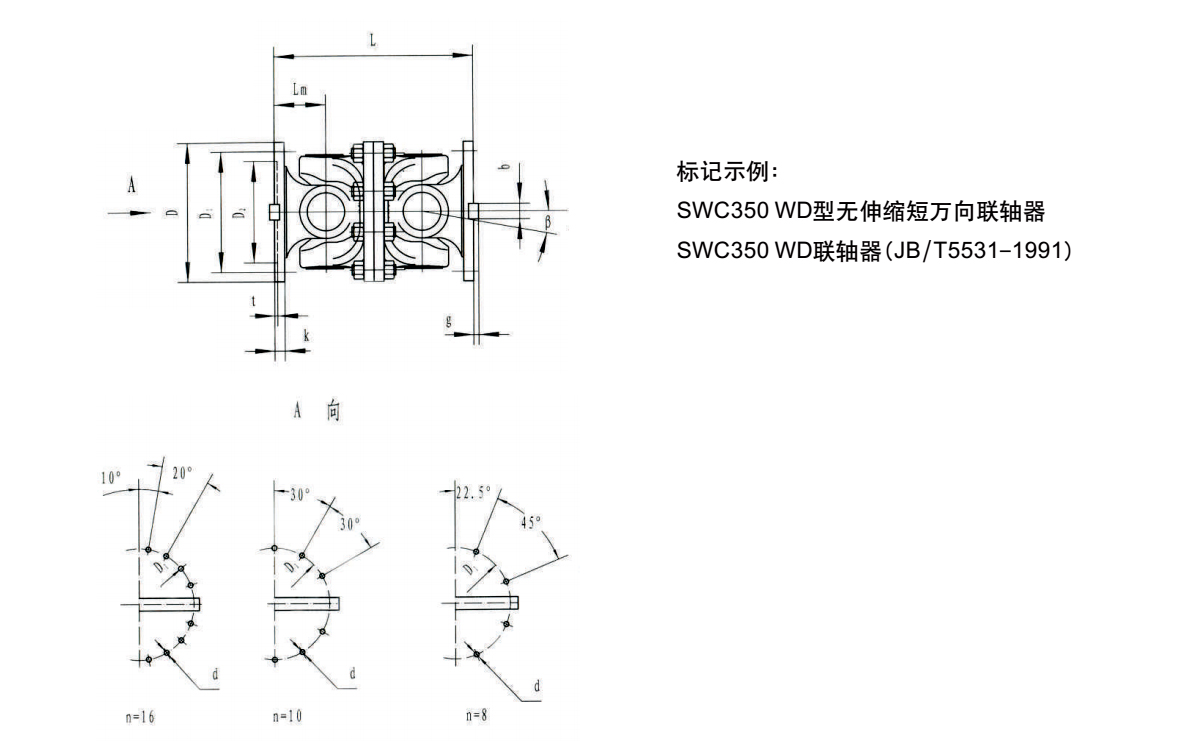

Product parameter picture display:
