Unveiling the Specific Role of Steel Ball Torque Limiters in Overload Protection

In the machinery industry, overload protection is a crucial aspect of ensuring the safe and stable operation of mechanical equipment. The steel ball torque limiter, as an efficient and reliable overload protection device, has become the preferred choice for most users in the mechanical industry. But do you know the specific role of the steel ball torque limiter in overload protection? In this article, Xinde will unveil the specific role of the steel ball torque limiter in overload protection by explaining its working principle, to help you better understand this safety device.

I. Working Principle of the Steel Ball Torque Limiter

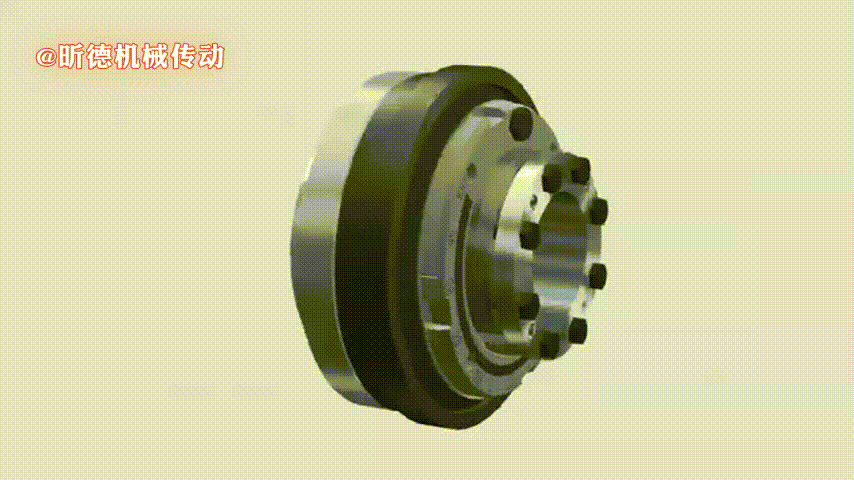

The steel ball torque limiter mainly consists of an outer sleeve and an inner sleeve, with a precision steel ball mechanism installed in the inner sleeve. When the torque in the transmission system is below the preset value, the steel balls remain in the grooves between the outer and inner sleeves due to pressure, ensuring normal torque transmission. However, once the torque exceeds the preset value, i.e., in the case of overload, the steel balls are pressed out of the grooves, causing slippage between the driving end and the driven end, thereby cutting off the power transmission and achieving torque limitation and protection.

II. Specific Roles in Overload Protection

1. Cutting Off Power Transmission: In overload situations, the steel ball torque limiter can quickly cut off power transmission to prevent mechanical equipment from being damaged due to excessive torque. This rapid response mechanism helps reduce equipment failures and downtime, improving production efficiency.
2. Protecting the Transmission System: Through slippage, the steel ball torque limiter can reduce the impact and wear on the transmission system, extending the service life of the equipment. This is particularly important for mechanical equipment that requires continuous operation for long periods.
3. Automatic Reset Function: After the overload condition disappears, the steel ball torque limiter can automatically reset, restoring the transmission system to its normal operating state. This automatic reset function reduces the need for manual intervention, enhancing the reliability and stability of the equipment.

III. Advantages of the Steel Ball Torque Limiter

1. High Precision: The steel ball torque limiter can precisely control torque transmission with high accuracy in setting the torque, suitable for applications requiring high transmission precision.
2. Rapid Response: With a response time typically between 0.001 and 0.003 seconds, it can quickly cut off power transmission at the moment of overload, effectively protecting the equipment.
3. Wide Application: The steel ball torque limiter comes in various specifications suitable for mechanical equipment with different torque ranges, offering a wide range of applications.

This concludes our sharing. We hope this article helps you better understand the specific role of the steel ball torque limiter in overload protection. We also look forward to this safety device playing a greater role in the future, contributing to the safety and development of industrial production. If you need to purchase this torque limiter, please contact us, Xinde Torque Limiter Manufacturer in Shanghai.
