LM（ML）jaw coupling

characteristics
1, the plum blossom elastic coupling has the function of compensating the relative displacement of the two axes, damping and buffering
2, medium speed, medium torque and other transmission shaft system and high reliability requirements of the working parts
3. The difficult part of the two axis alignment after the replacement of the elastic element is limited
LM(ML) type plum shaped elastic coupling operating temperature -35℃+80℃, transmission torque 16-25000N.M High bearing capacity, simple structure, no lubrication, easy maintenance Welcome to call: 13
INQUIRY

Product name: LM(ML) type plum blossom elastic coupling
Product Model: LM (ML)
Product Features:

1. Star elastic coupling has the function of compensating the relative displacement of two axes, absorbing shock and buffering. It has small radial size, simple structure, no lubrication, high bearing capacity and easy maintenance

2. Transfer torque 15~235000N. M Operating environment temperature -35~80℃. Medium speed, medium torque and other transmission shaft system and requirements of high reliability of the working parts
Product material: regular 45# steel can be customized special material
Surface treatment: natural surface black
Application: Star elastic coupling is characterized by pre-stressed no-backlash connection, used in spindle drive, lifting platform and machine tools
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!

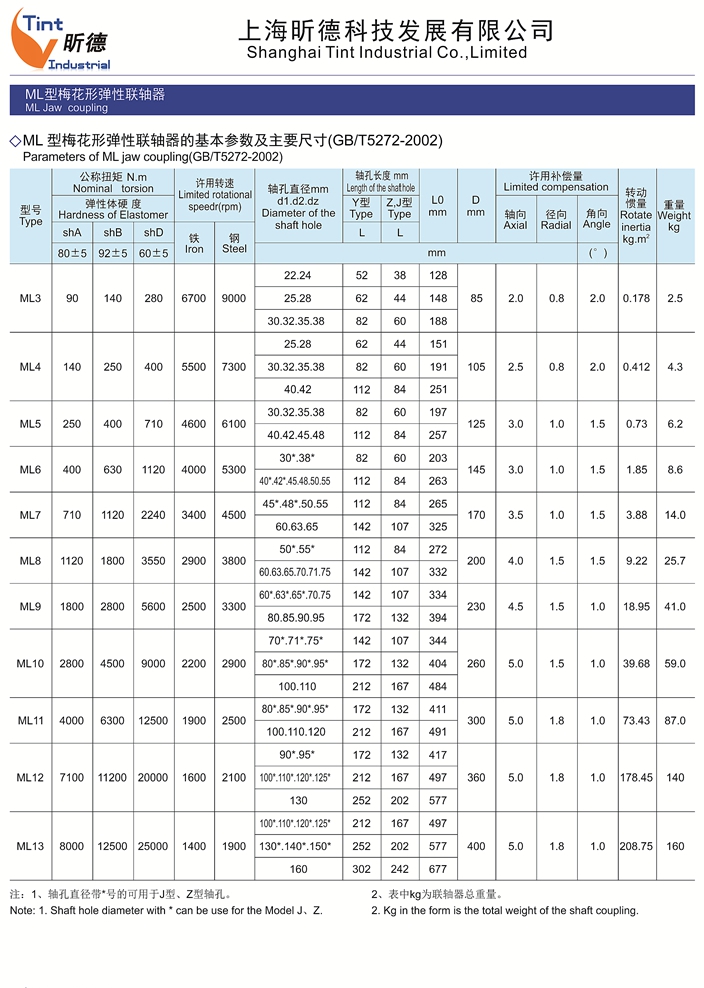

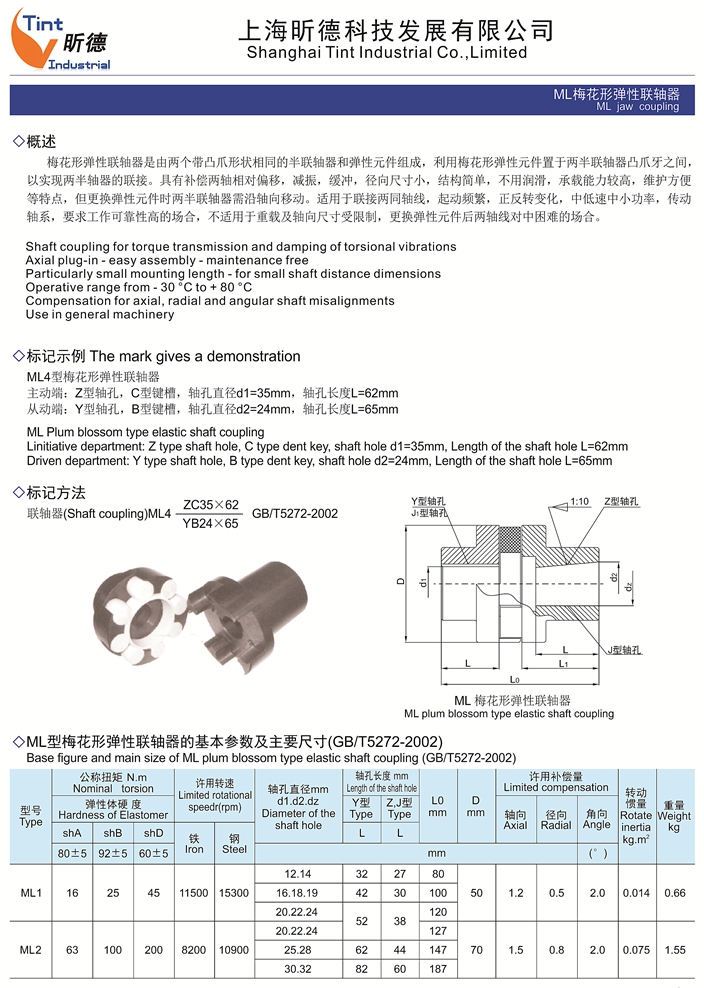

Product parameter picture display:
