Product name: GIICL drum gear coupling
Product Model: GIICL
Product Features:
1. Strong bearing capacity. Under the same inner sleeve outer diameter and the maximum outer diameter of the coupling, the average bearing capacity of the drum gear coupling is 15 ~ 20% higher than that of the straight gear coupling.
2. Large amount of angular displacement compensation. Under the same modulus, tooth number and tooth width, the allowable angular displacement of drum tooth is larger than that of straight tooth.
3. The drum tooth surface improves the contact conditions of the inner and outer teeth and avoids the edge extrusion of the straight tooth end under the condition of angular displacement.
The tooth end of the outer gear is in the shape of a horn, so that the inner and outer teeth are very convenient to assemble and disassemble.
Transmission efficiency up to 99.7%.
Product material: regular 45# steel can be customized special material
Product usage: suitable for low speed and heavy load working conditions, such as metallurgy, mining, lifting and transportation industries, also suitable for petroleum, chemical, general machinery and other kinds of machinery shafting drive.
Delivery time: large stock, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!

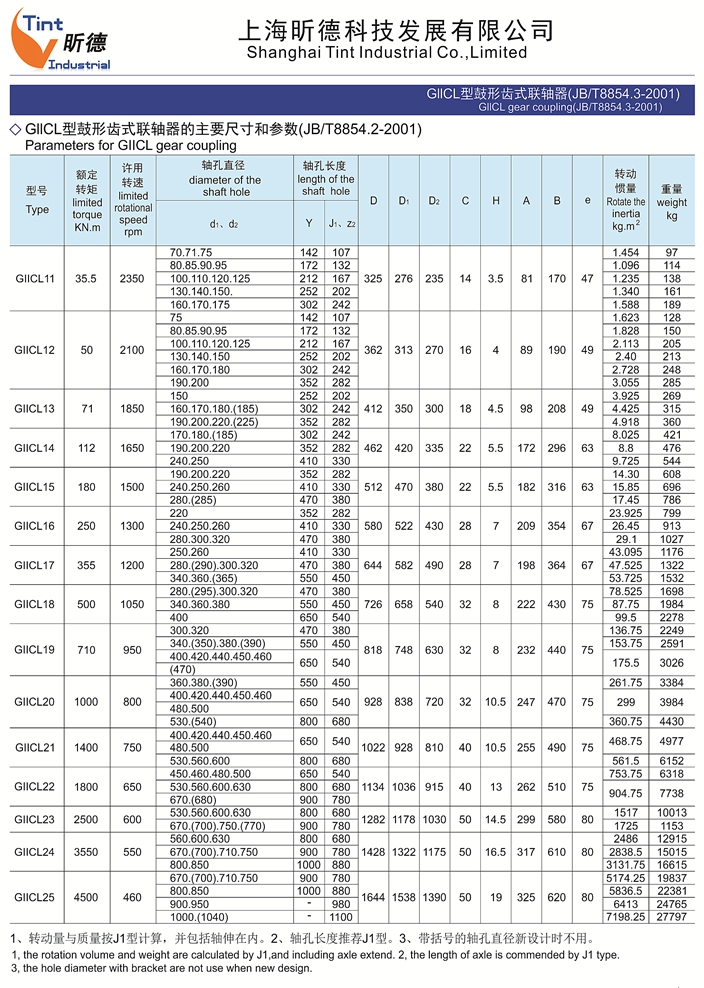

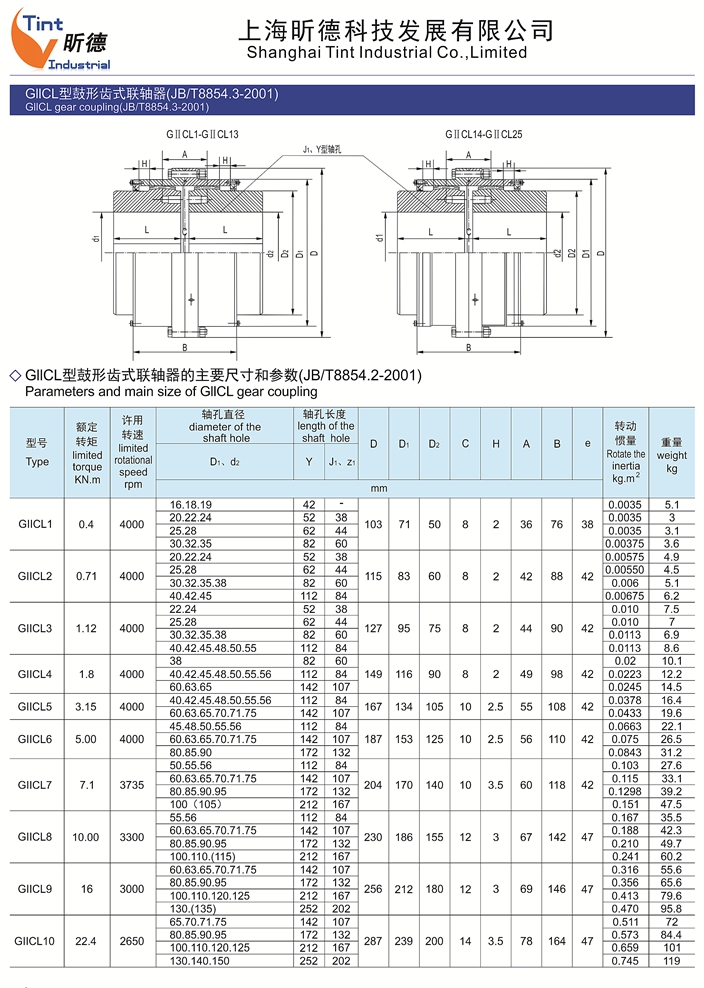

Product parameter picture display:
