Cross slide coupling

characteristic
1.Detachable design, easy to install and disassemble. Fastening method of positioning screw The main body is made of special aluminum for high strength couplings
2.colloidal materials imported PA66, with good wear resistance, corrosion resistance and electrical insulation
3. Sliding design can compensate radial and angular deviation more effectively
Aluminum alloy cross slider is detachable for easy installation Clamping screw fastening method Welcome to call: 13371933299
INQUIRY

Product Name: Clamping screw fixed type cross slider coupling
Product Features:

1. The main shaft sleeve is made of aluminum alloy, light volume. The middle cross slider can be used for a variety of different colors, easy installation, maintenance-free, oil resistance, corrosion resistance and electrical insulation, high torque, high rigidity, high sensitivity coupling with simple structure, allowing large radial and axial deviation

Product material: regular aluminum alloy can be customized special material
Surface treatment: surface anodizing
Application: Suitable for servo motor, stepper motor
Delivery time: large stock of semi-finished products, please inquire
Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version
Order in large quantities, the price is superior!

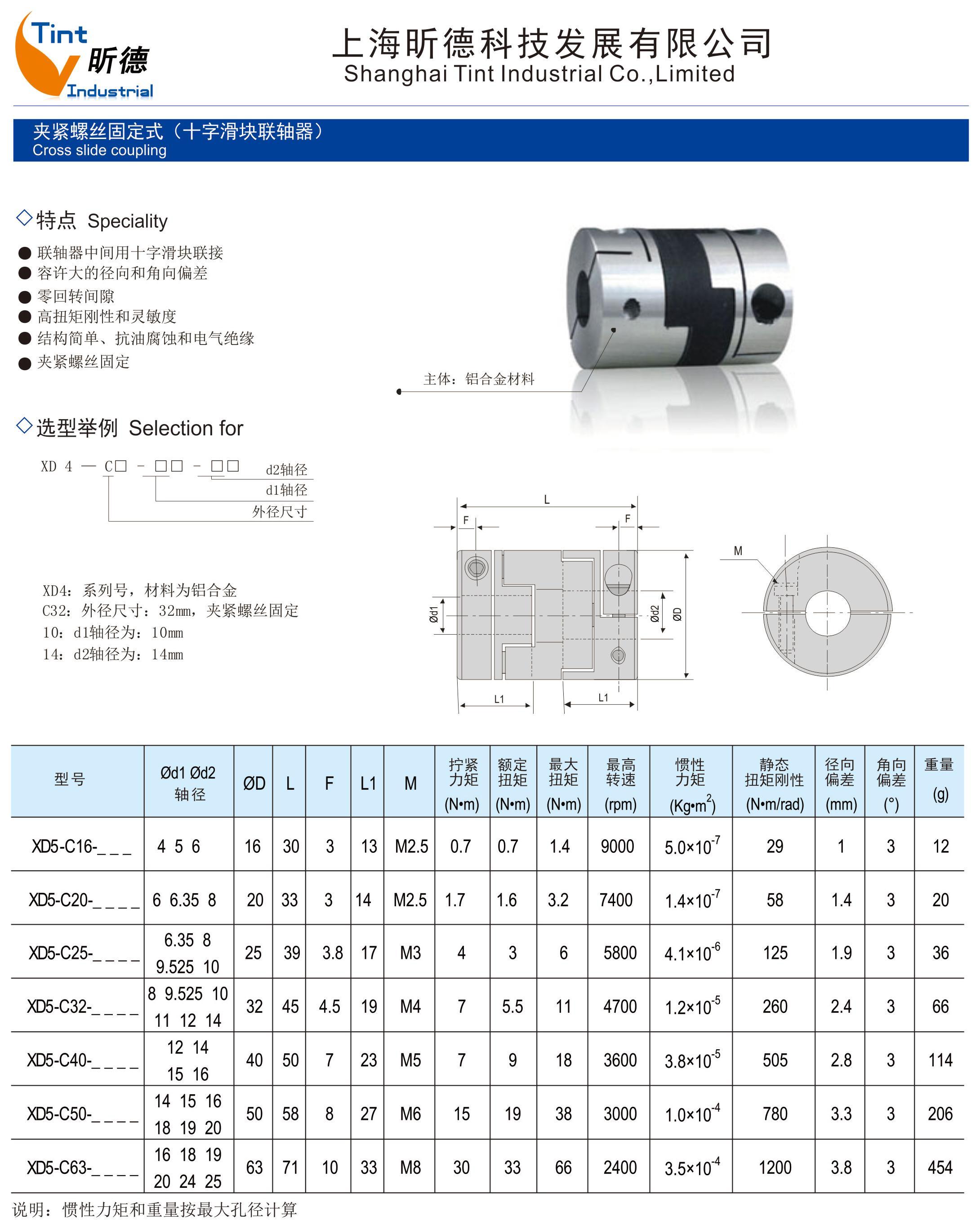

Product parameter picture display:
