GL roller chain coupling

characteristics
1, the use of a common chain and two parallel sprocket with the same number of teeth meshing, in order to achieve the connection of two half couplings
2, simple structure, convenient loading and unloading; Disassembly without moving the two connected shafts
3, compact size, light weight, has a certain compensation ability, the installation accuracy is not high
GL type roller chain coupling has low cost and is suitable for high temperature, damp and dusty conditions Not suitable for high speed, severe impact load and transfer of axial force Welcome to call
INQUIRY

Product name: GL type roller chain coupling

Product model: GL

Product Features:

1. The chain coupling has the advantages of simple structure (four pieces), convenient assembly and disassembly, and no need to move the two shafts connected when disassembling

2. Compact size, light weight, a certain compensation ability, low requirements for installation accuracy, reliable work, long life, low cost advantages.

Product material: regular 45# steel can be customized special material

Surface treatment: natural surface black

Product use: can be used for textile, agricultural machinery, lifting transport, engineering, mining, light industry, chemical and other machinery shafting drive

Delivery time: large stock of semi-finished products, please inquire

Note: If you need to provide technical support, please call us for details. We will provide the selection catalogue of paper version and electronic version

Order in large quantities, the price is superior!

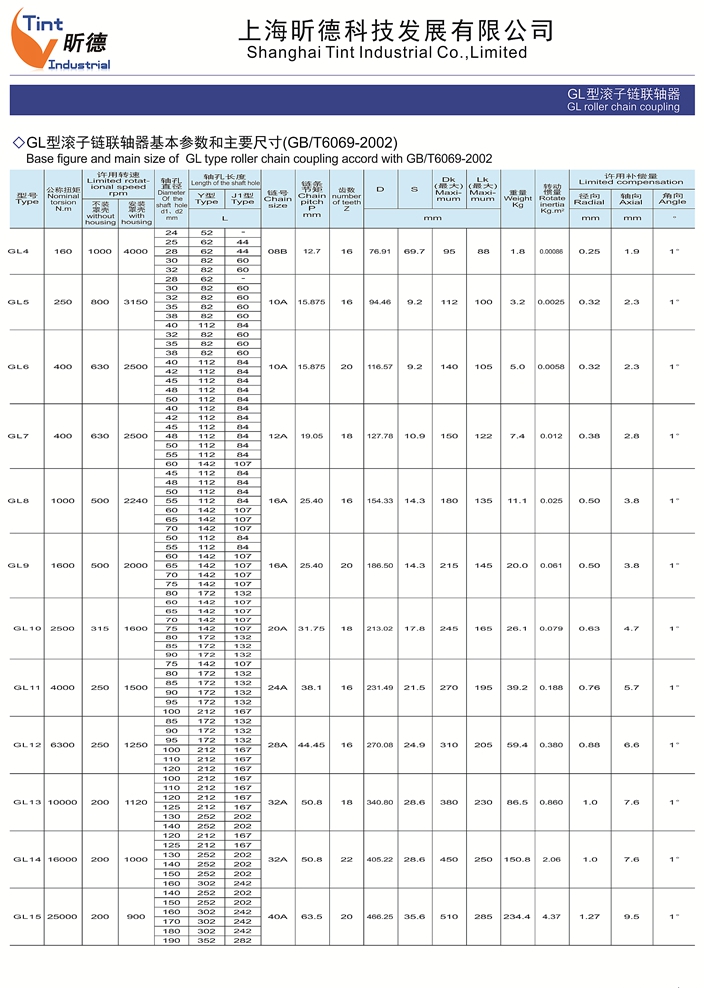

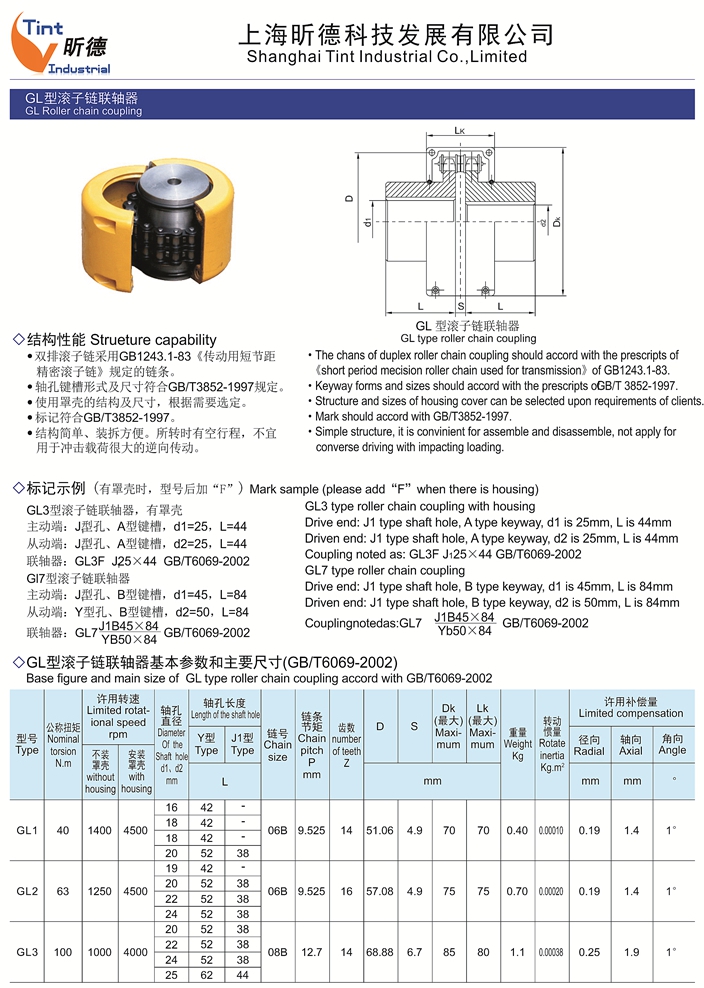

Product parameter picture display:
