Detailed Introduction to Universal Couplings: SWC-I Lightweight Cross-axis Universal Coupling

Universal couplings come in a wide variety of models and series. In the past, the SWP model was quite common, but nowadays, the SWC series cross-axis universal couplings have become the mainstream in the market. Within the SWC series, the SWC-I series, also known as the SWC-I lightweight universal coupling, stands out prominently. Judging from its name, it can be regarded as a "lightweight version" of the SWC coupling. Despite its compact size, it has a wide range of application scenarios and can be found in paper manufacturing, light machinery, water pumps, and various experimental table equipment.

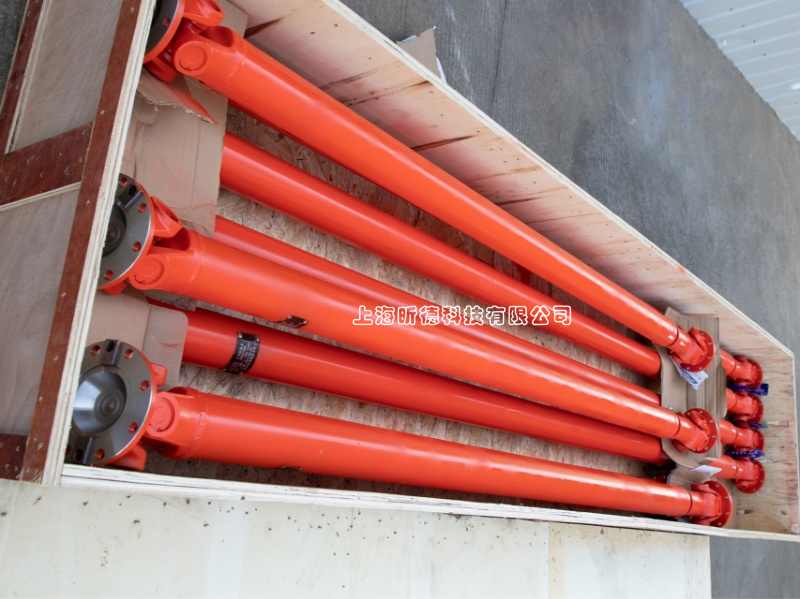

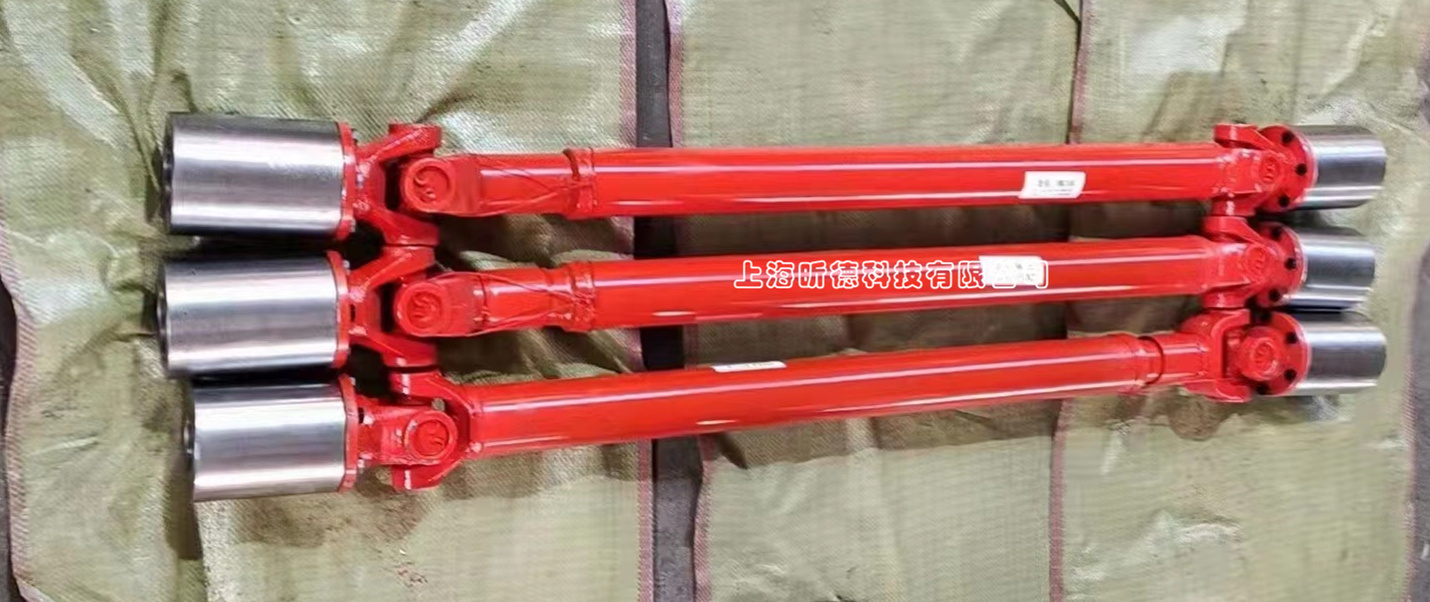

Overview of SWC-I Lightweight Cross-axis Universal Coupling

1. Name Explanation: The SWC-I lightweight cross-axis universal coupling is named the "lightweight version" because, compared to the SWC cross-axis universal coupling, its fork head, cross package, intermediate steel tube dimensions, and overall weight are all reduced under the same connection flange size. This characteristic makes it an ideal choice for equipment that requires control over the overall weight.

2. Parameter Specifications: The SWC-I lightweight cross-axis universal coupling is also suitable for connecting two transmission shafts with different axes. Its flange diameter ranges from 58 to 225mm, with a rated torque transmission range of 150 to 22,000N.m and an axis angle range of 25° to 35°.

3. Type Classification: Based on structural differences, the SWC-I lightweight universal coupling can be divided into four types: Type A (with shaft tube and telescopic function), Type B (with short telescopic function), Type C (without telescopic function), and Type D (with shaft tube but without telescopic function). These types basically cover various specifications of the SWC series standard models.

Whether in paper manufacturing, light machinery, water pumps, or experimental table equipment, the SWC-I lightweight universal coupling can provide stable and efficient transmission solutions. As one of our core products at Xinde, we are committed to providing high-quality products and services to our customers. If you are interested in our products or have any questions or needs, please feel free to visit our official website for consultation and ordering.
